Description

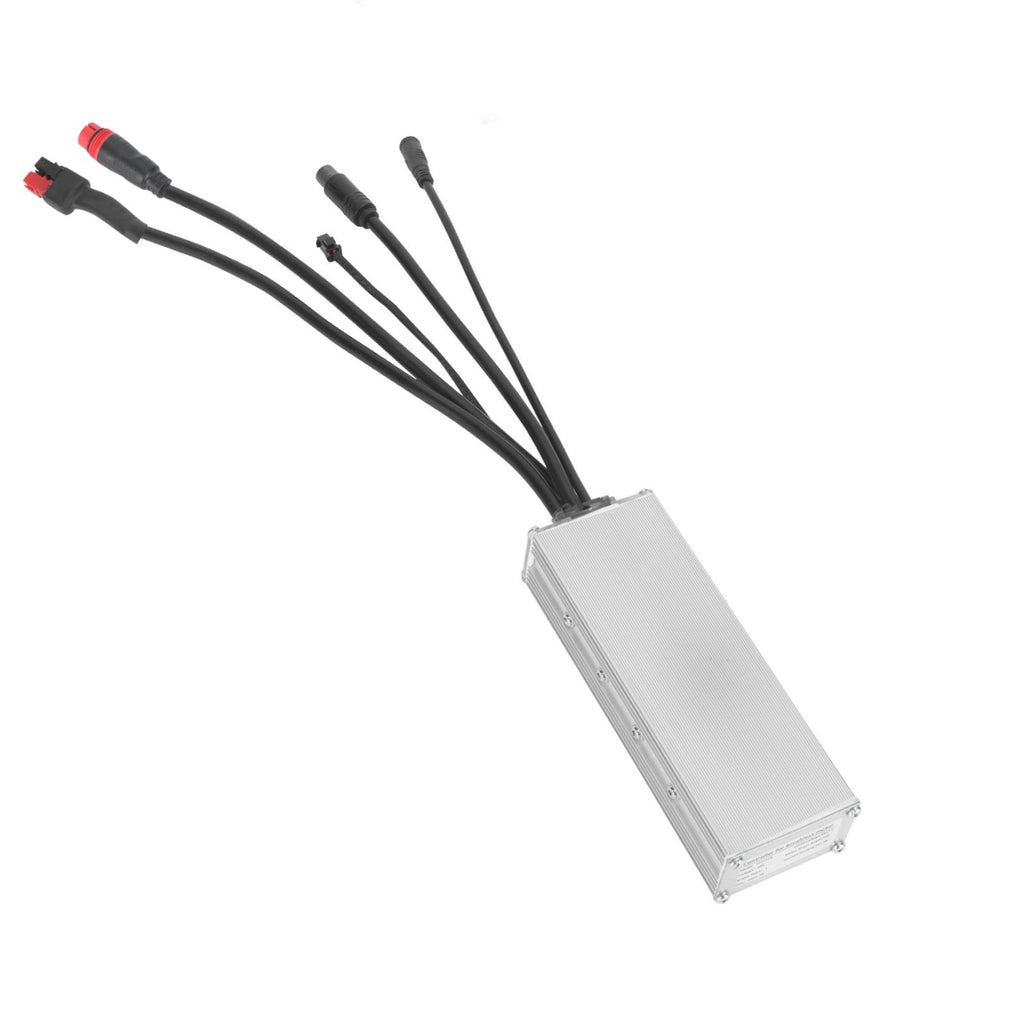

This 48V, 750W controller is designed for BAFANG RM G062.750.DC and RM G0900.750.DC hub motors, supporting both rear and front-wheel drive configurations. Featuring BAFANG's UART 5.9 protocol and a 25A current limit, it ensures reliable performance.

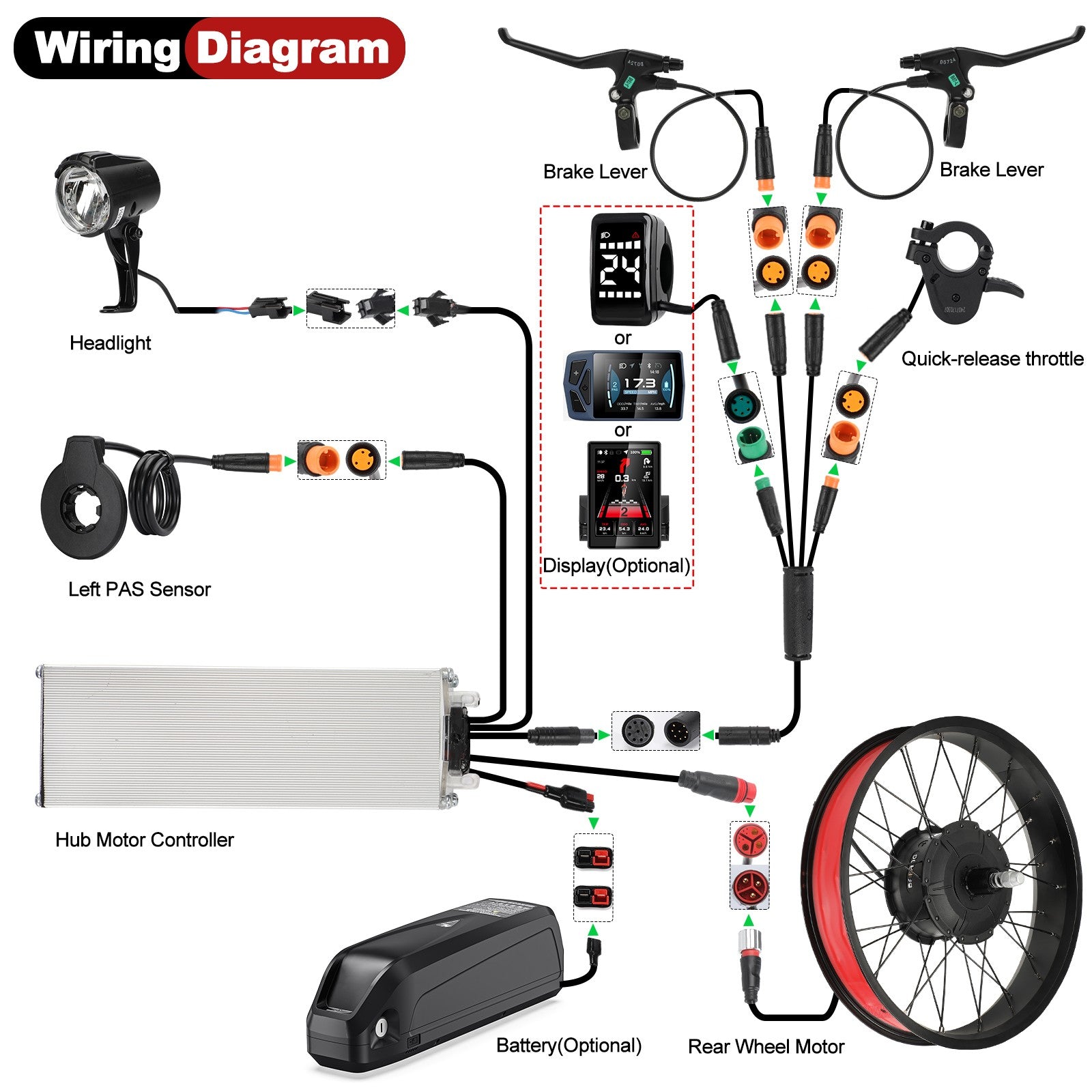

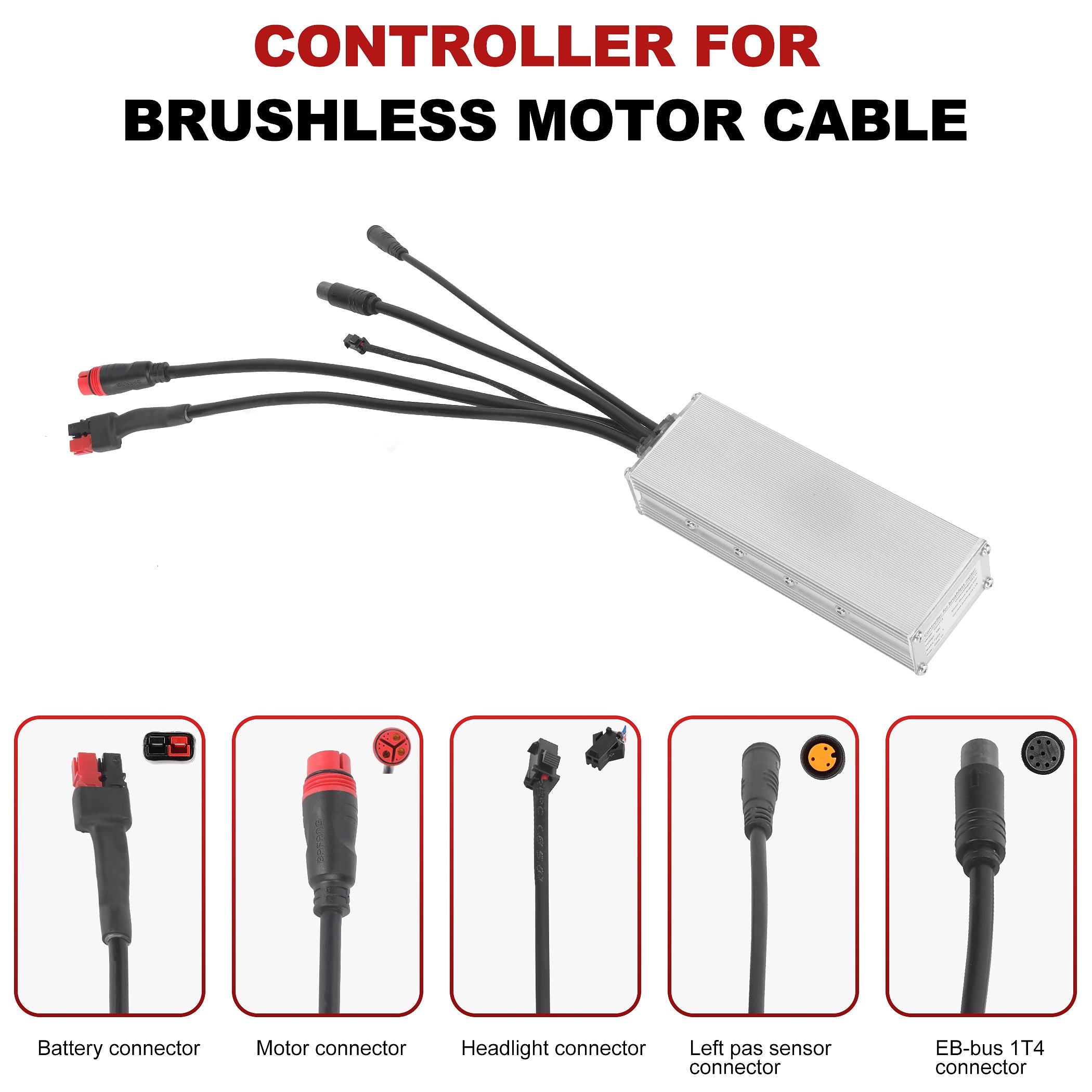

Outlet Functions:
- 11-Pin Motor Connector (Red Female)
- 2-Pin Headlight SM Connector (Yellow Female)
- 3-Pin PAS Sensor Connector (Yellow Female)
- 8-Pin 1T4 Cable (Black Female):
- Brake Lever Support
- E-Bike Display Support
- Thumb Throttle Support
- Anderson Battery Connector
Technical Specifications:
- Protocol: BAFANG UART 5.9
- Voltage: 48V
- Power: 750W
- Current Limit: 25A
- Low Voltage Protection: 39±1V
- Weight: 0.9 lbs"
